007-AUS

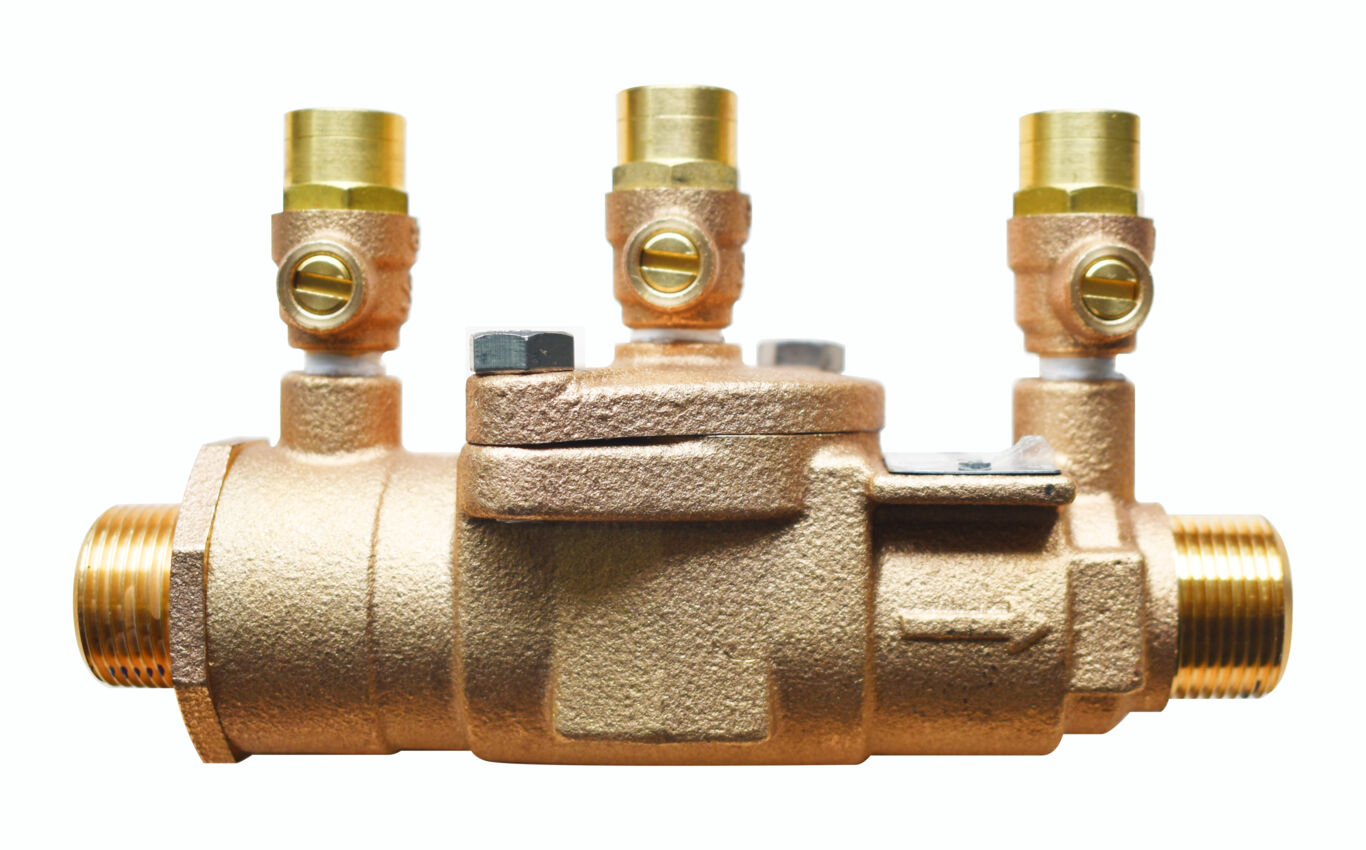

Double Check Backflow Preventer, DN15-DN50
Series 007-AUS double check valve backflow preventer are designed to protect drinking water supplies from dangerous cross-connections in accordance with national plumbing codes and water authority requirements for non-potable service applications such as irrigation, fireline, or industrial processing. Only those cross-connections identified by local inspection authorities as non-health hazard shall be allowed the use of an approved double check valve assembly. Check with local authority having jurisdiction regarding vertical orientation, frequency of testing or other installation requirements. Protect drinking water supplies from dangerous cross-connections in accordance with national plumbing codes and water such as irrigation, fireline, or industrial processing. Only those cross-connections identified by local inspection authorities as non-health hazard shall be allowed the use of an approved double check valve assembly. Check with local authority having jurisdiction regarding vertical orientation, frequency of testing or other installation requirements. The valve shall meet the requirements of ASSE Std. 1015 and AWWA Std. C510. Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California.
Features
- Compact, space saving design
- Large body, passages provides low pressure drop
- Top entry single access cover and modular check construction for ease of maintenance
- No special tools required for servicing
- Captured springs for safe maintenance
- Replaceable seats for economical repair
- Ball valve test cocks-screwdriver slotted
Series Specifications | |
---|---|
Application | Backflow Prevention |
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 007-AUS
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet or contact us. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
Watermark |
